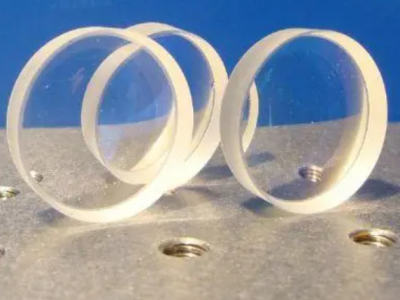

MgF2平凸球面透镜

MgF2平凸球面透镜

材　　料:MgF2(氟化镁)

设计波长:200nm,486nm,633nm,2.0μm

焦距公差:±2%

外形公差:+0.0/-0.1mm

厚度公差:±0.2mm

面　　型:λ/2@632.8nm

光 洁 度:80-50

偏　　心:<3'

有效孔径:>80%

倒　　边:Custom Design



MgF2平凸球面透镜                  (尺寸及镀膜可按用户需求定制)单位(mm)

编号(NO.) 焦距(EFL) 直径(Dia) 半径(R) 中心厚(Tc) 边厚(Te) 后焦距(BFL)

18A6002R 44.64(200nm),49.68(486nm),50.10(633nm),51.35(2.0μm) 25.40 18.89 6.90 2.00 39.79

18A6004R 66.83(200nm),74.36(486nm),75.00(633nm),76.86(2.0μm) 25.40 28.27 5.00 2.00 63.31

18A6005R 89.37(200nm),99.45(486nm),100.30(633nm),102.79(2.0μm) 25.40 37.81 4.30 2.10 86.35

18A6006R 133.74(200nm),148.83(486nm),150.10(633nm),153.83(2.0μm) 25.40 56.58 3.20 1.80 131.49

18A6007R 178.20(200nm),198.31(486nm),200.00(633nm),204.97(2.0μm) 25.40 75.40 3.20 2.10 175.96

18A6008R 222.84(200nm),247.98(486nm),250.10(633nm),256.32(2.0μm) 25.40 94.28 2.80 1.90 220.88

18A6009R 445.51(200nm),495.76(486nm),500.00(633nm),512.43(2.0μm) 25.40 188.49 2.60 2.20 443.68

18A6010R 891.02(200nm),991.53(486nm),1000.00(633nm),1024.87(2.0μm) 25.40 376.98 2.40 2.20 889.34

长春市亮丽光电有限公司主营：光学平台，移动台，支架;欢迎与我们联系！
